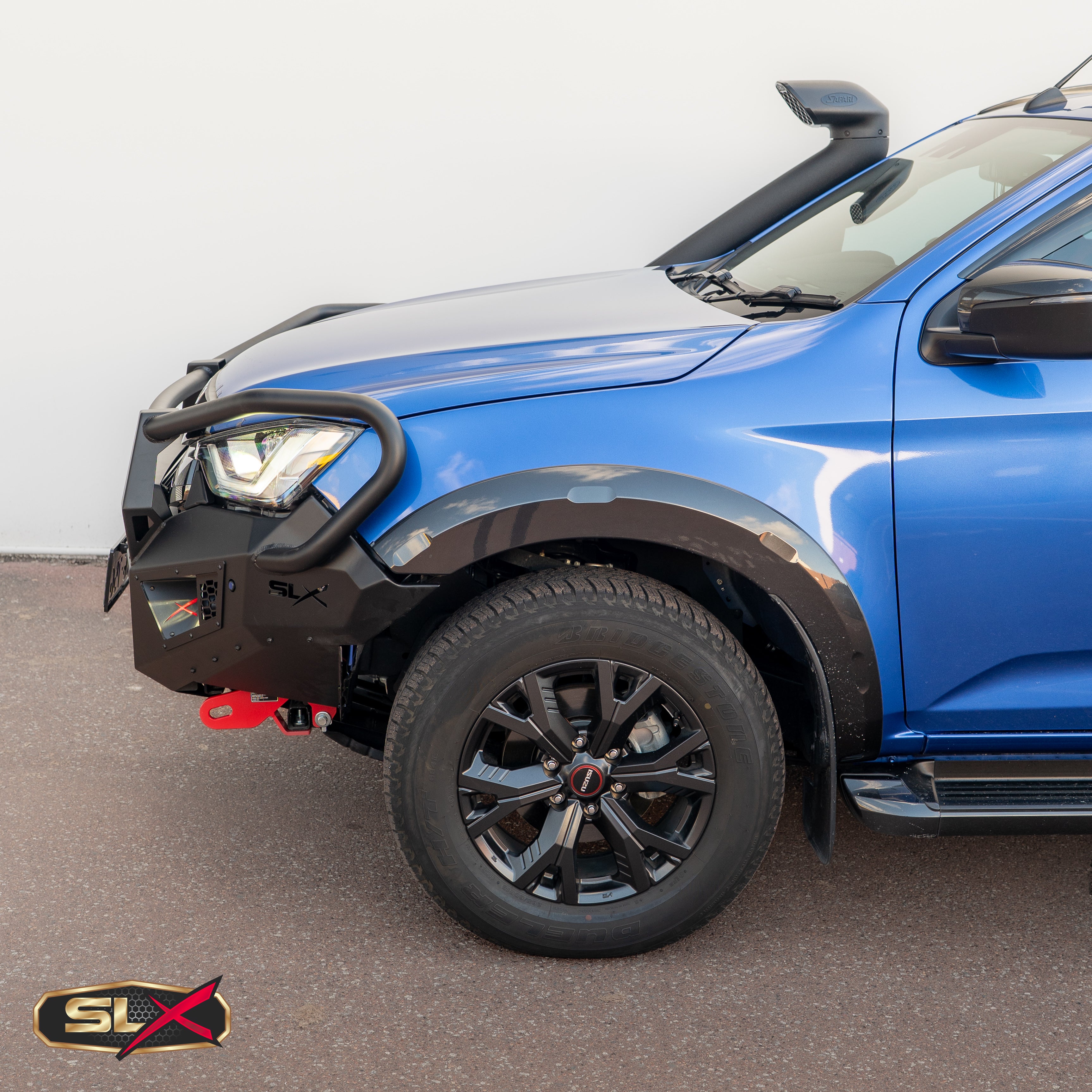

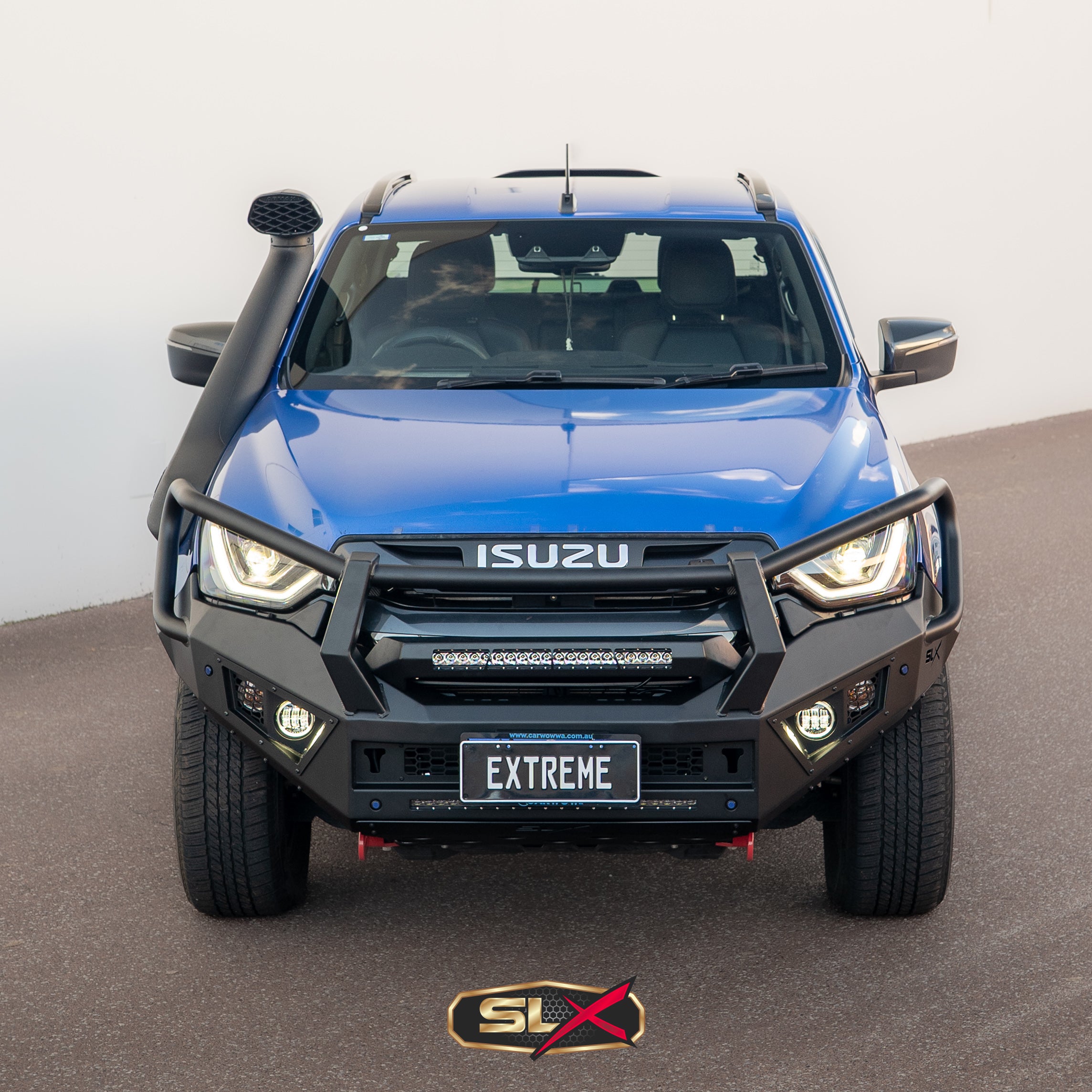

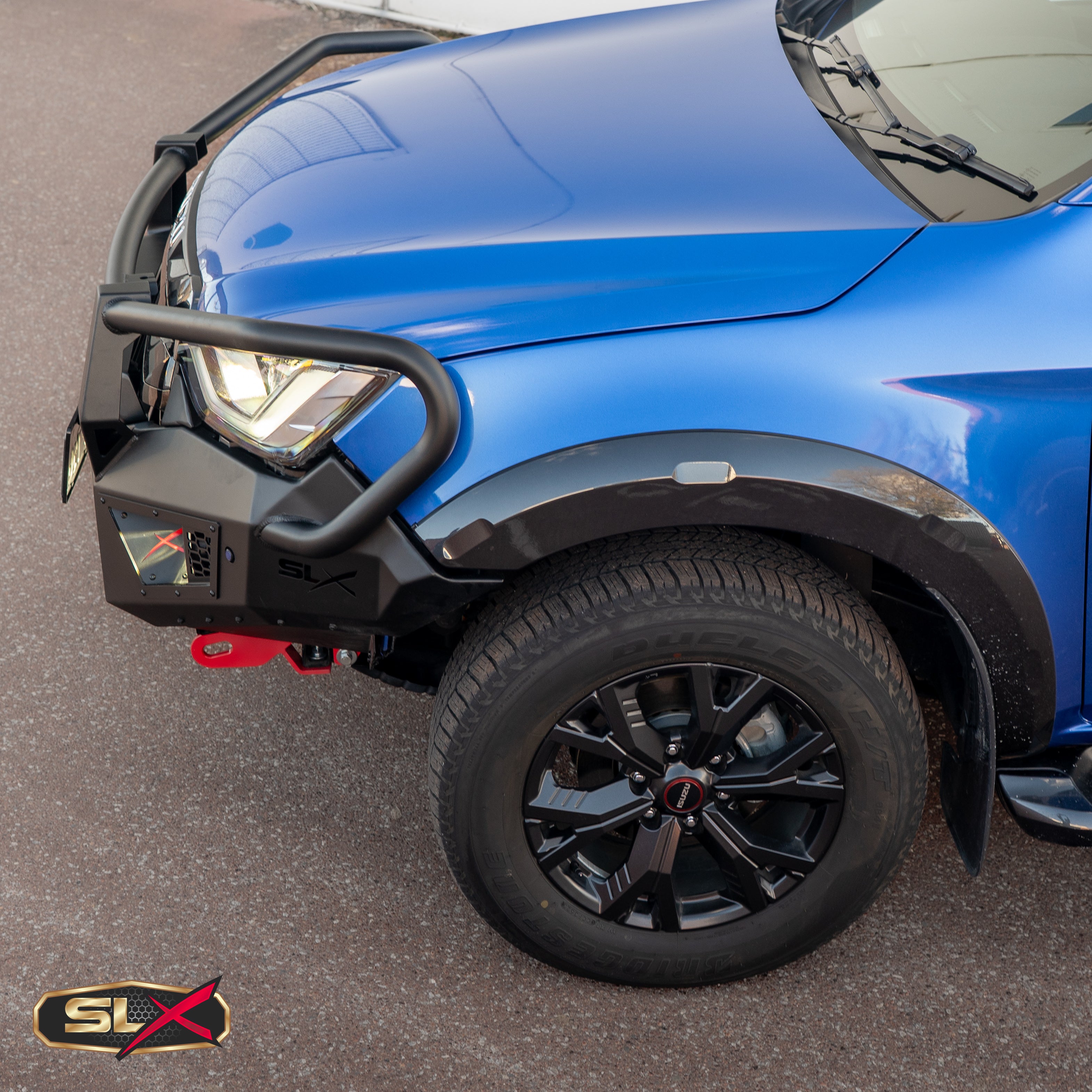

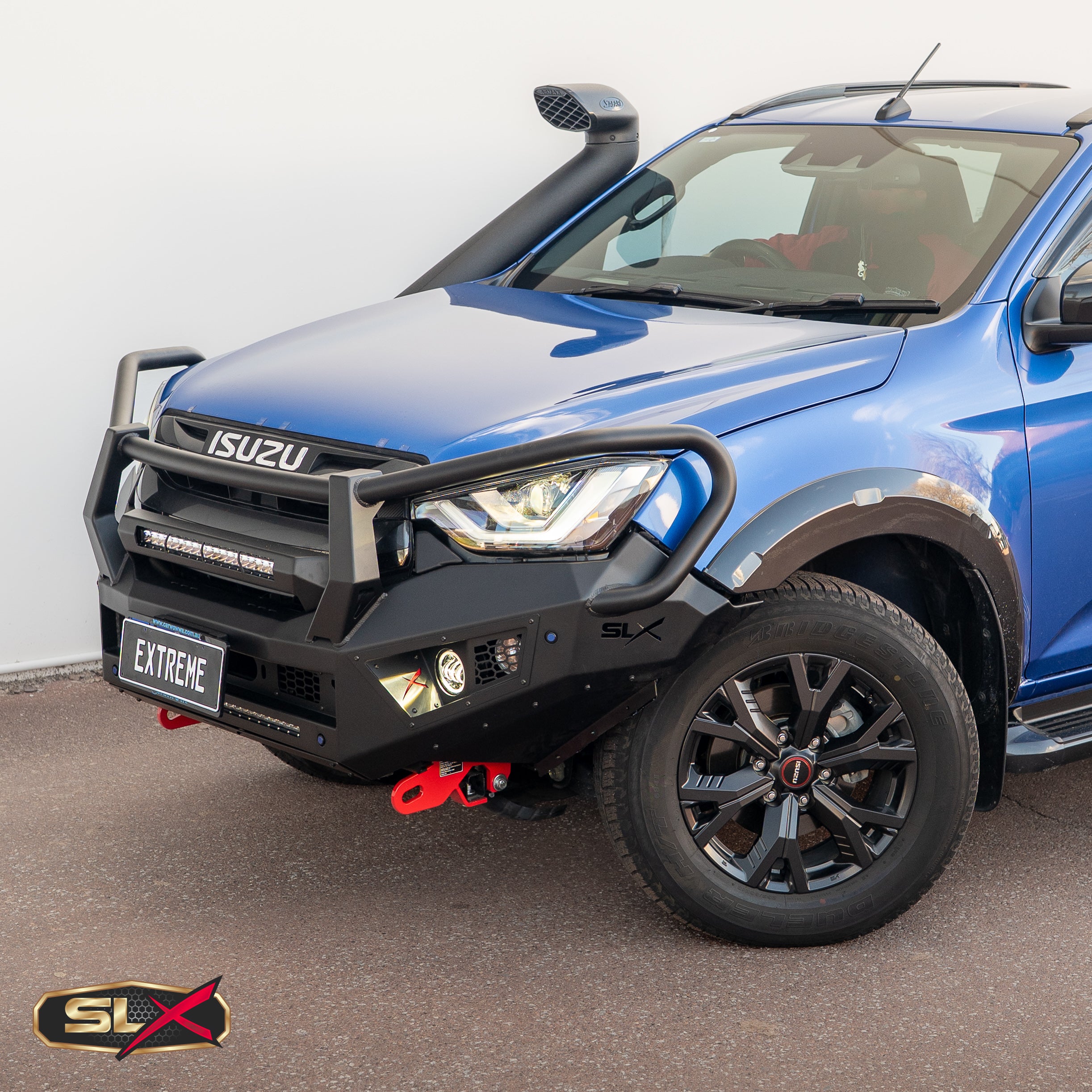

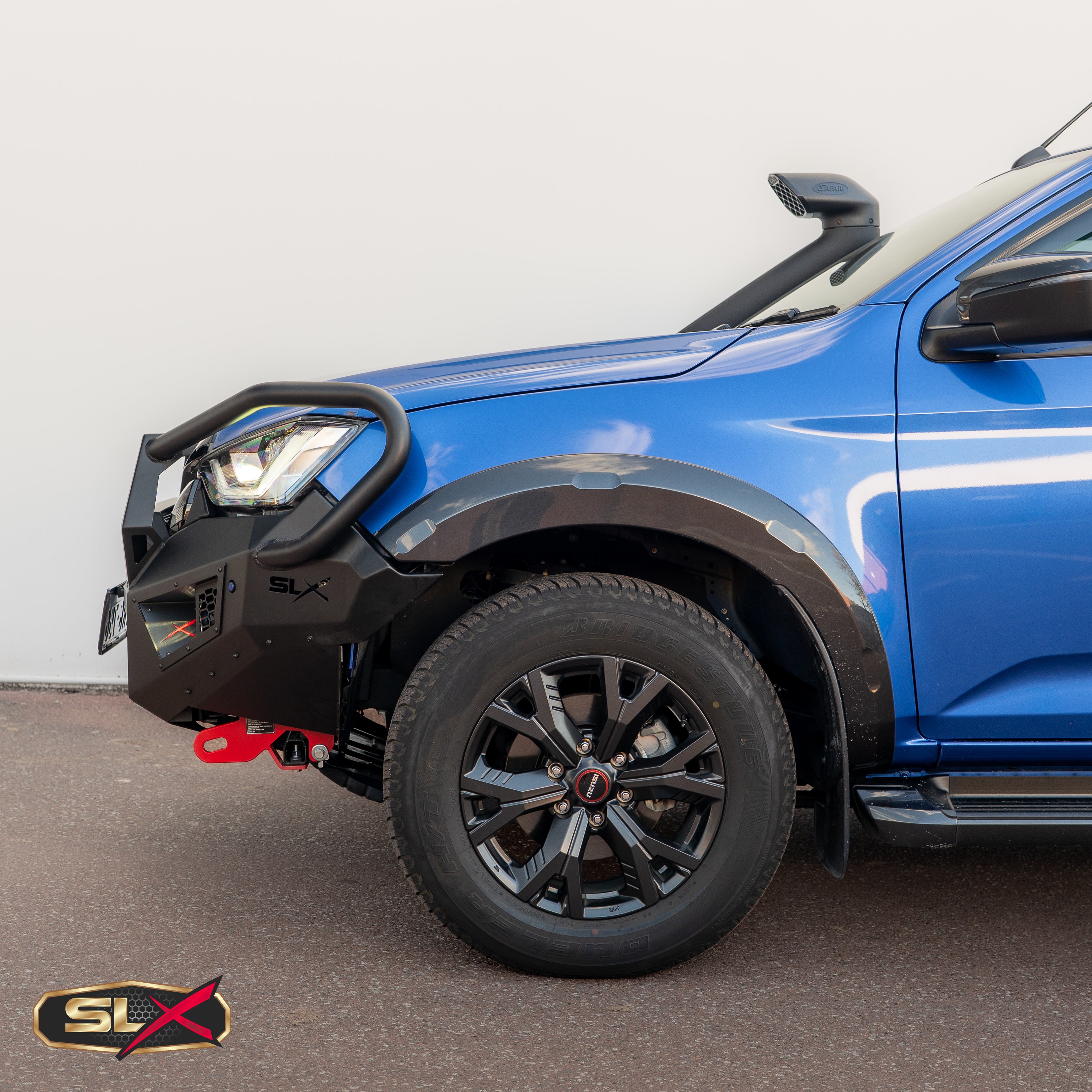

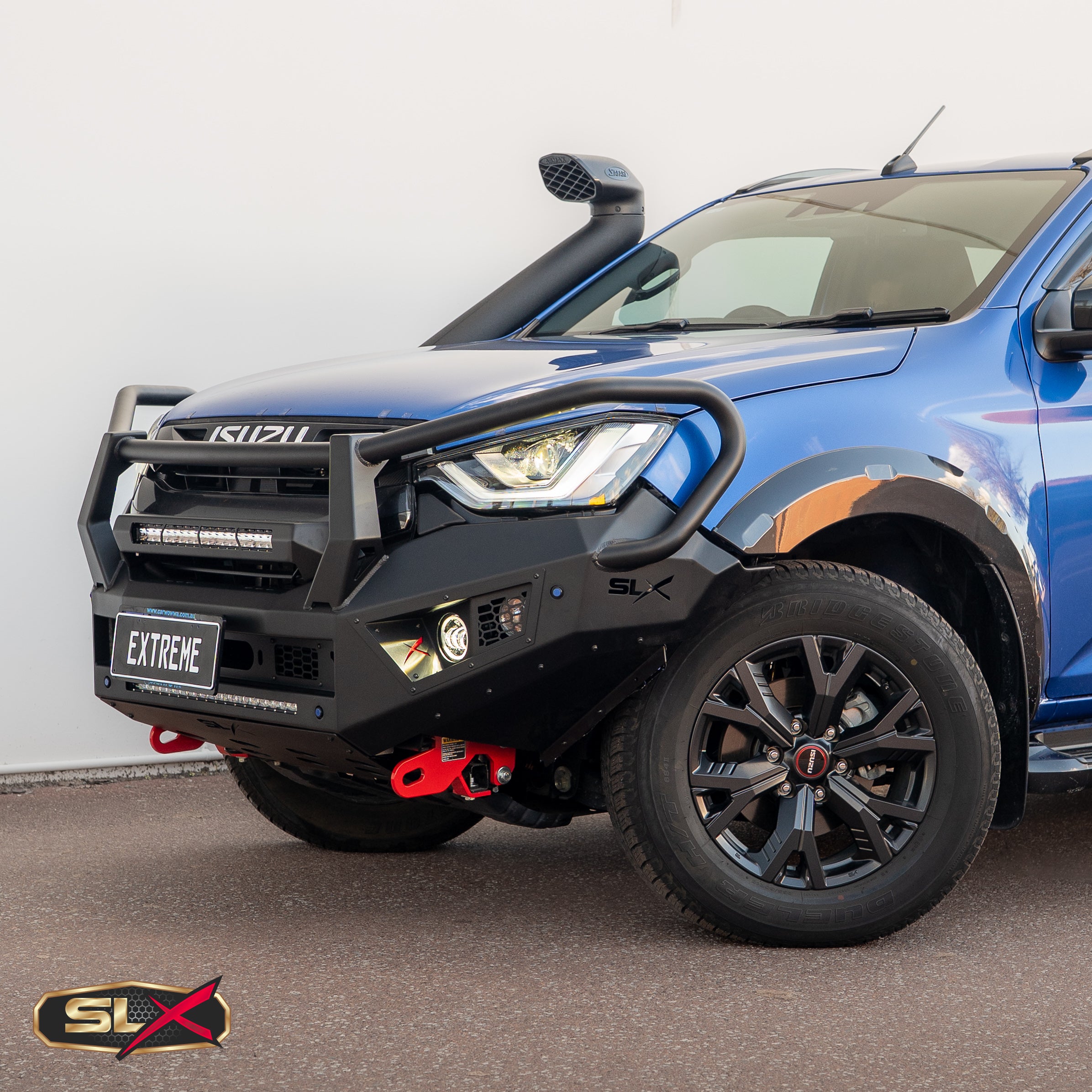

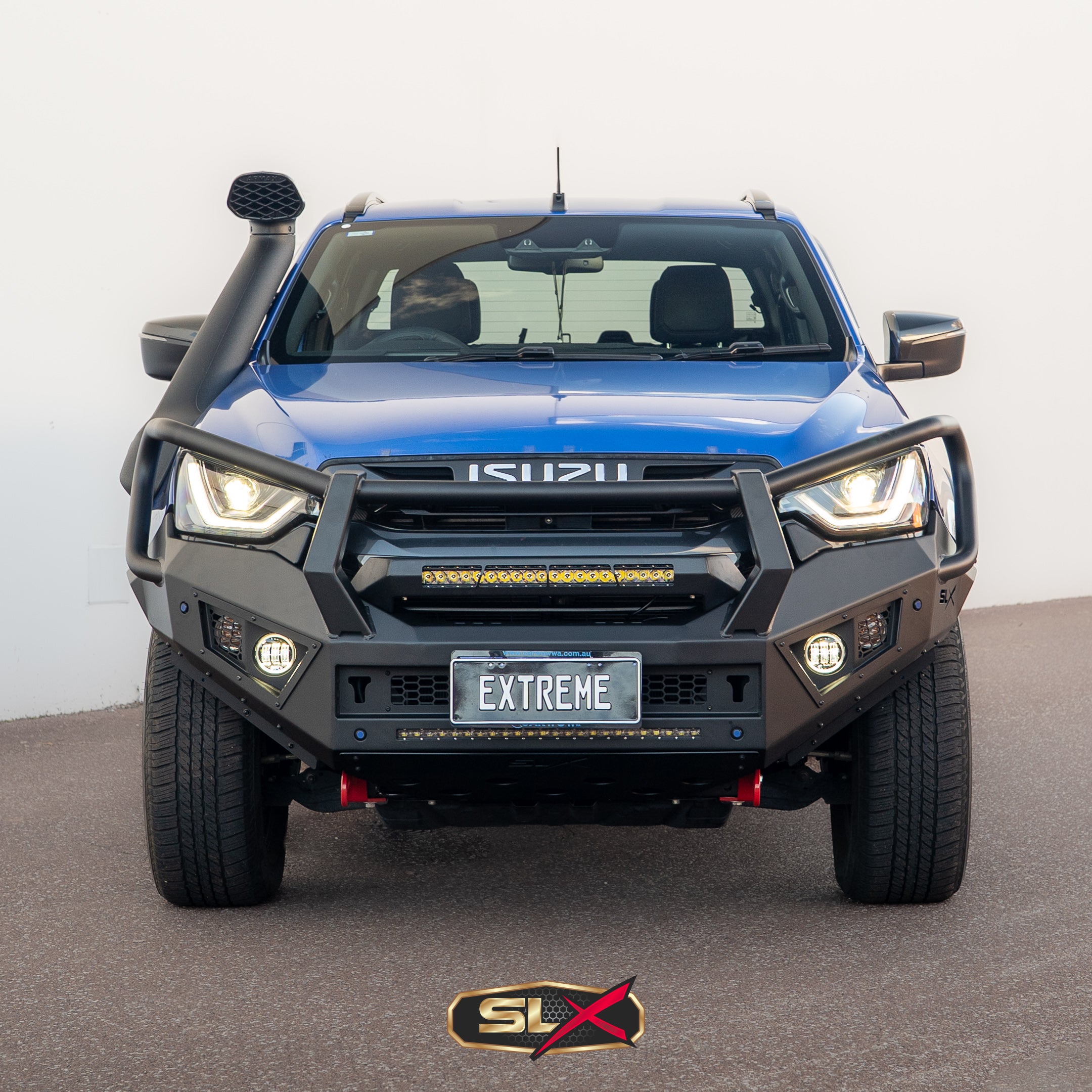

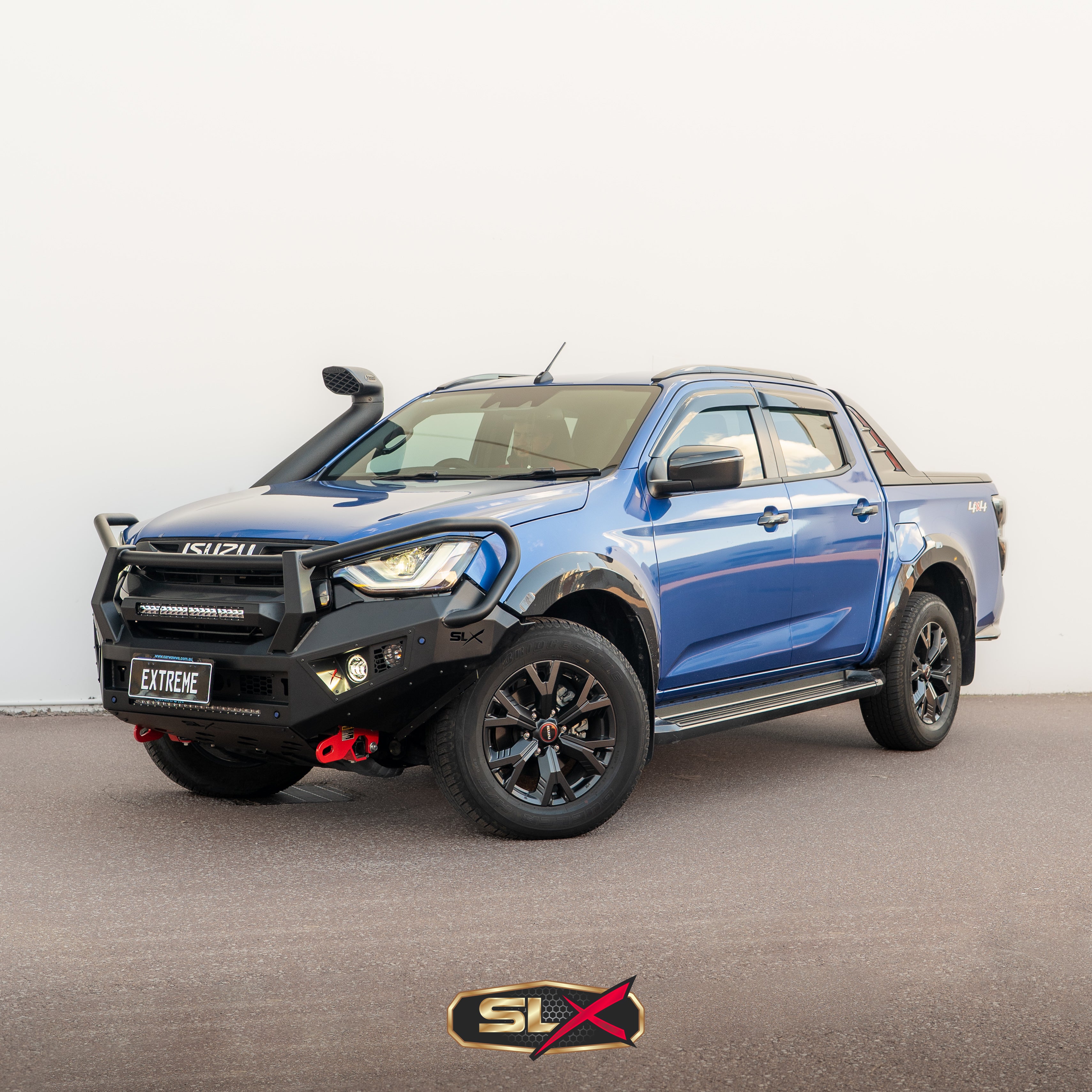

SLX EXTREME SERIES BULLBAR - Isuzu Dmax 2020 -03/2024 Triple Loop

By SLX4X4
$3,199.00

INCLUDES

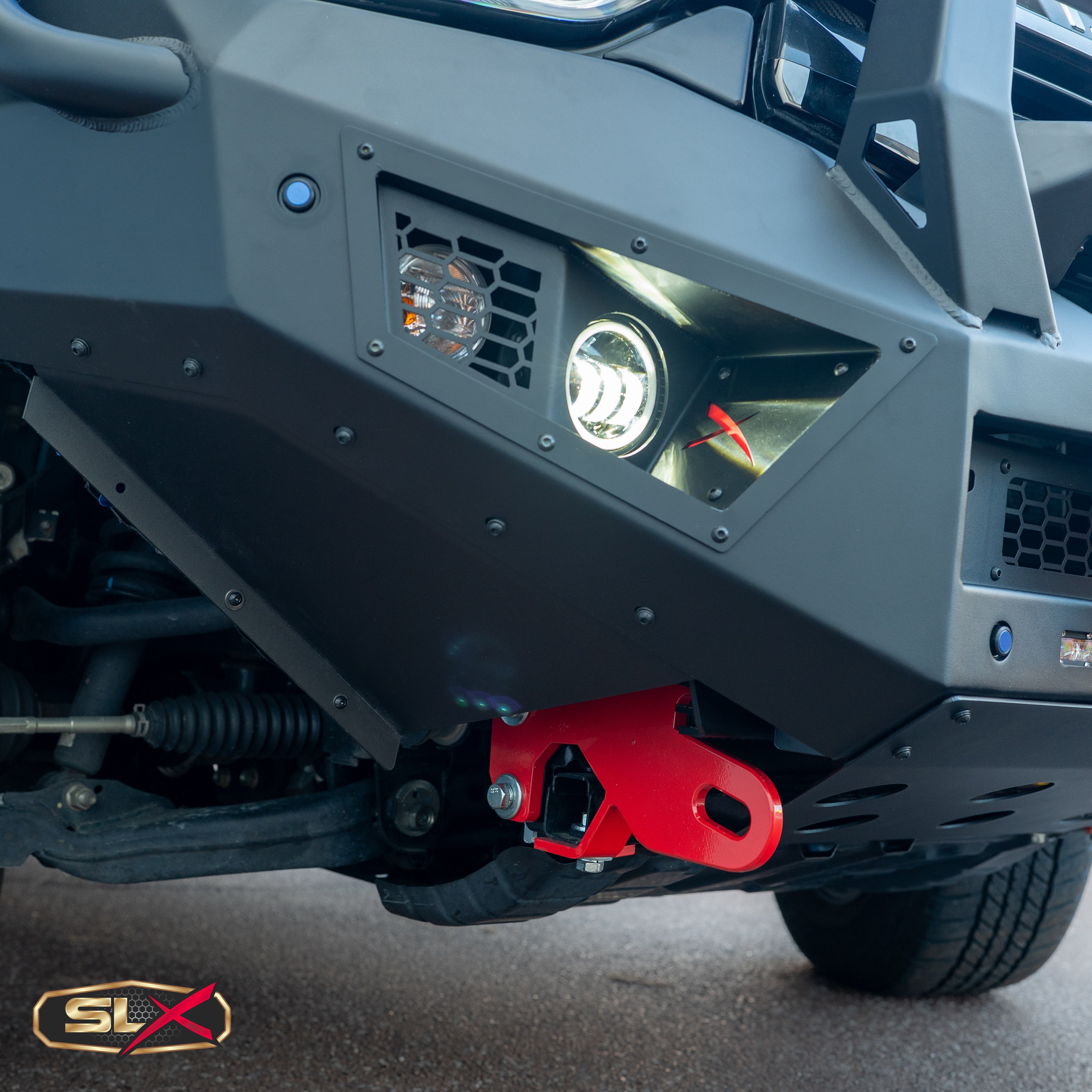

  1. Chassis mounted 4.5T Recovery points included
  2. 4mm bash plate steel
  3. Winch Cradle

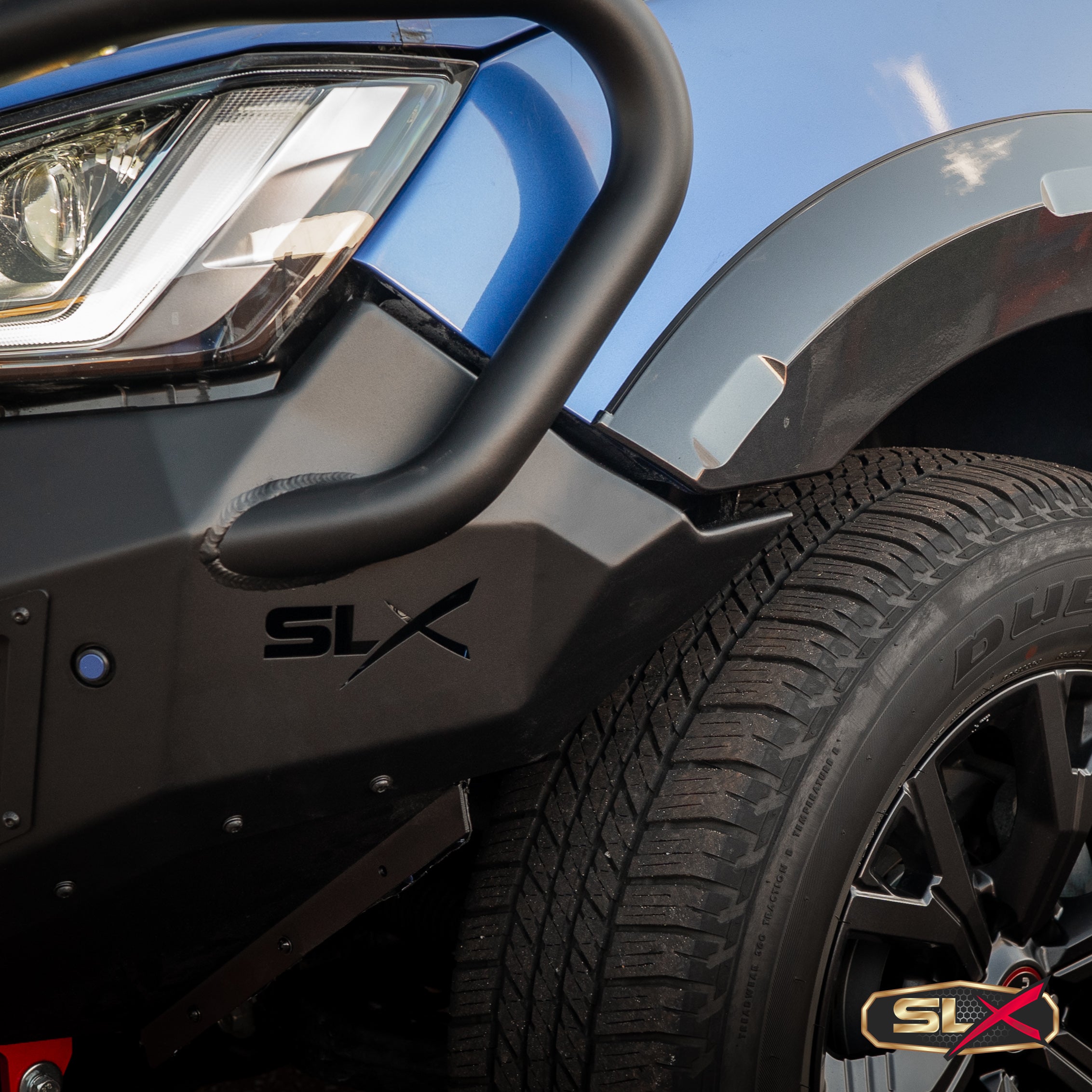

  4. Under wing Side bash plates
  5. Removable mesh vents centre

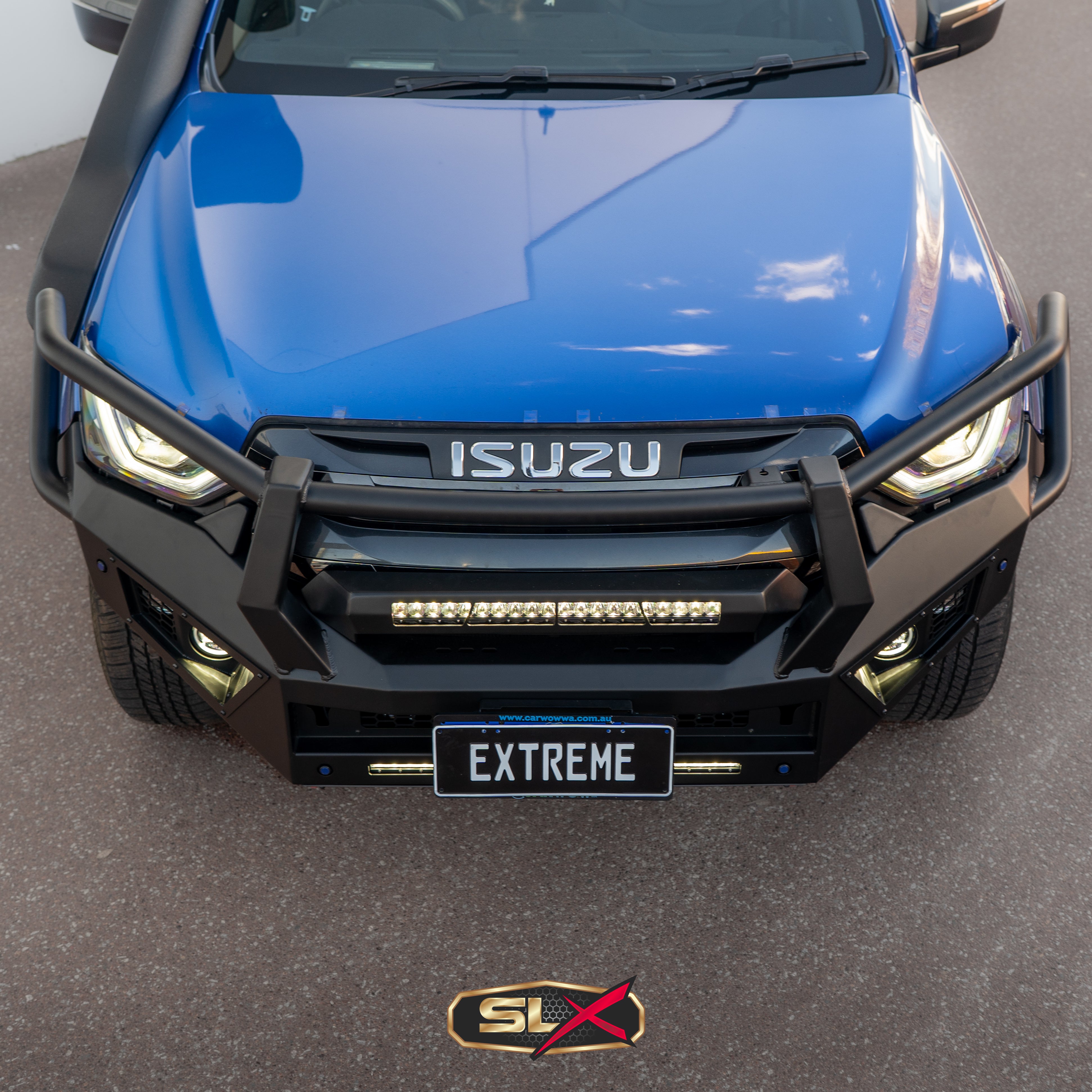

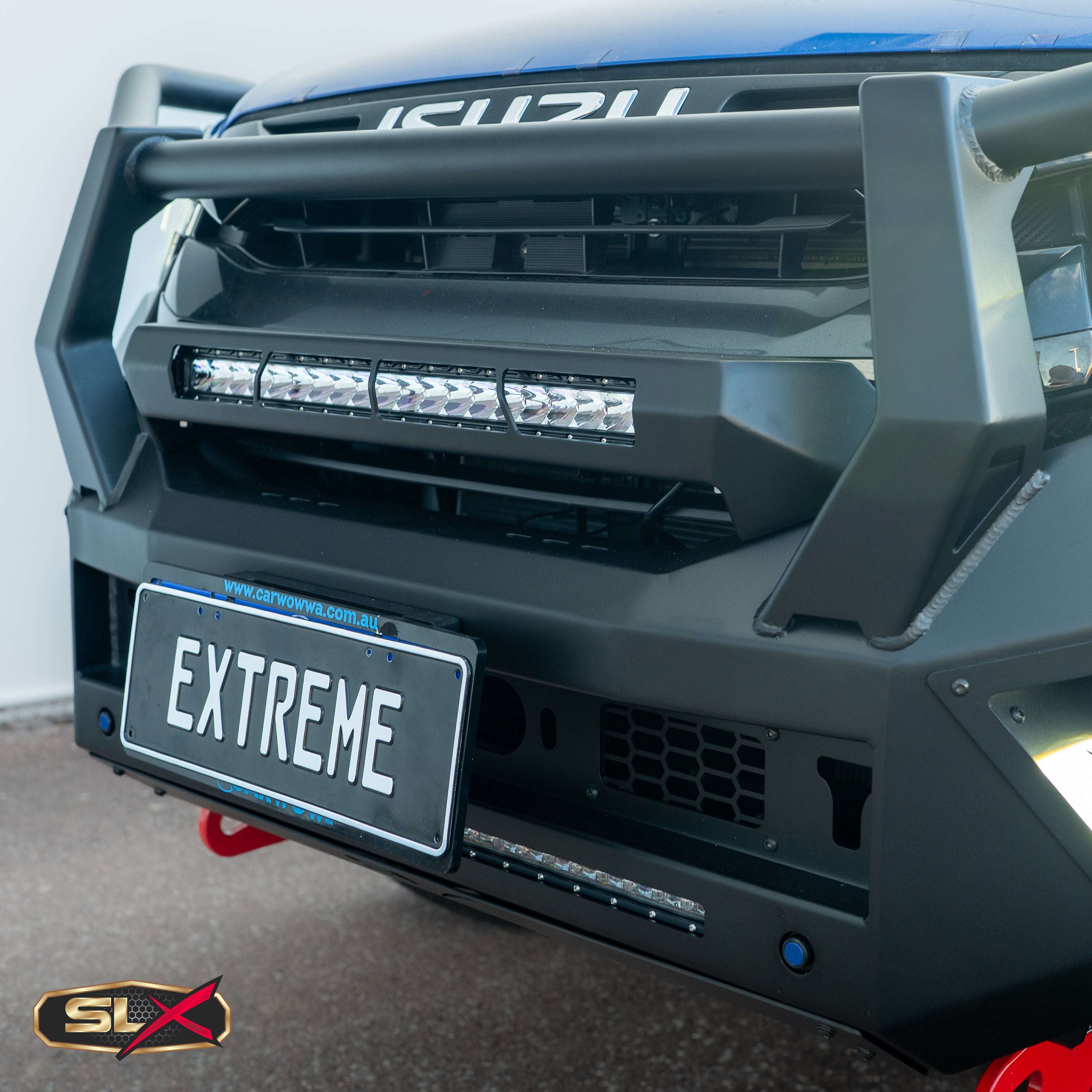

  6. Removable metal loop included which can hold a 21.5inch LED bar provision  . IE Stedi ST3K 21.5inch ( not included)
  7. Spot light holes cutout in top of bar if not running led bar metal loop

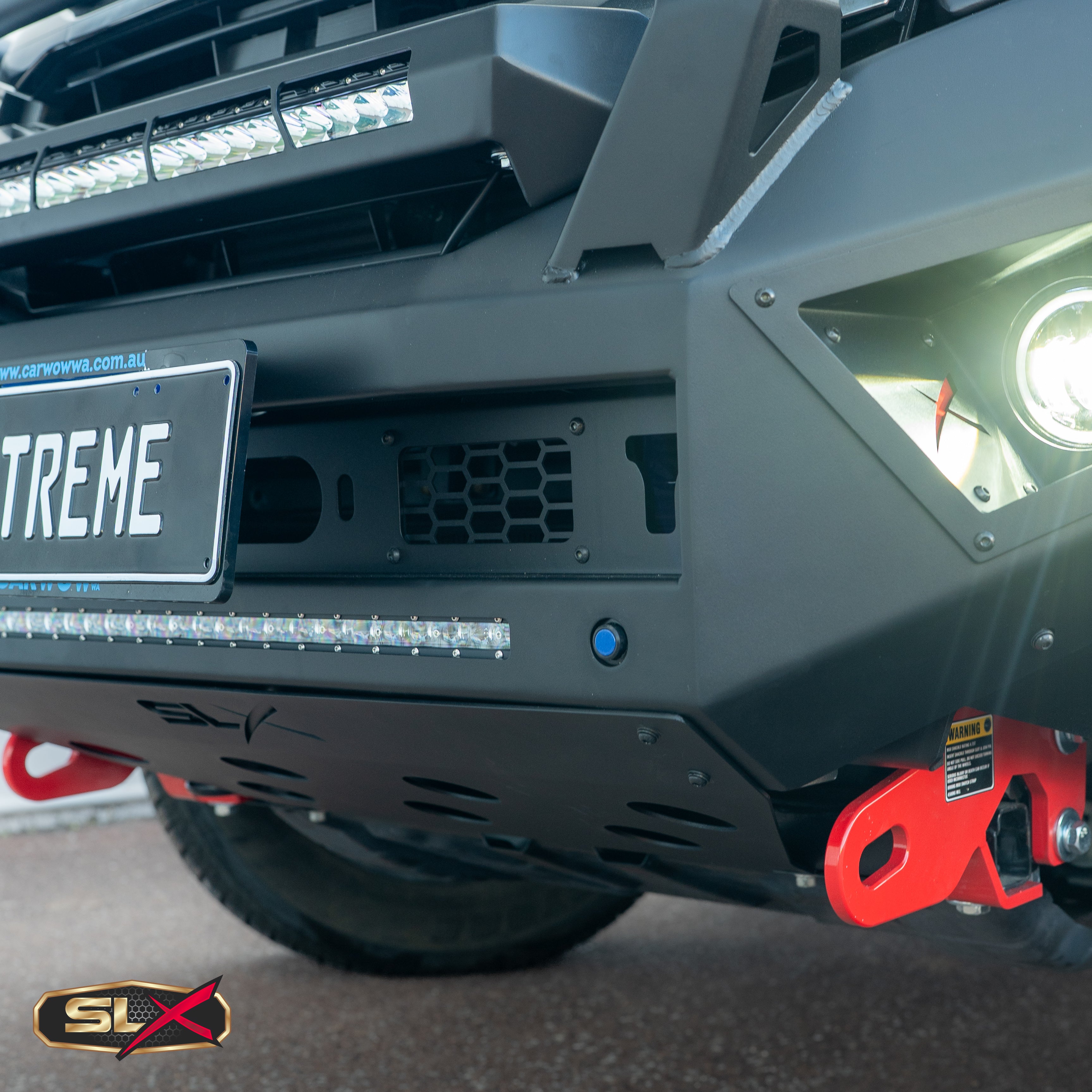

  8. Cutout under number plate for 25inch single row 120w LED bar ( LED bar not included)
    The 25inch led bar can be purchased from SLX website, the Loop LED bar 21.5inch suits a stedi brand or similar mounting hole led bar.

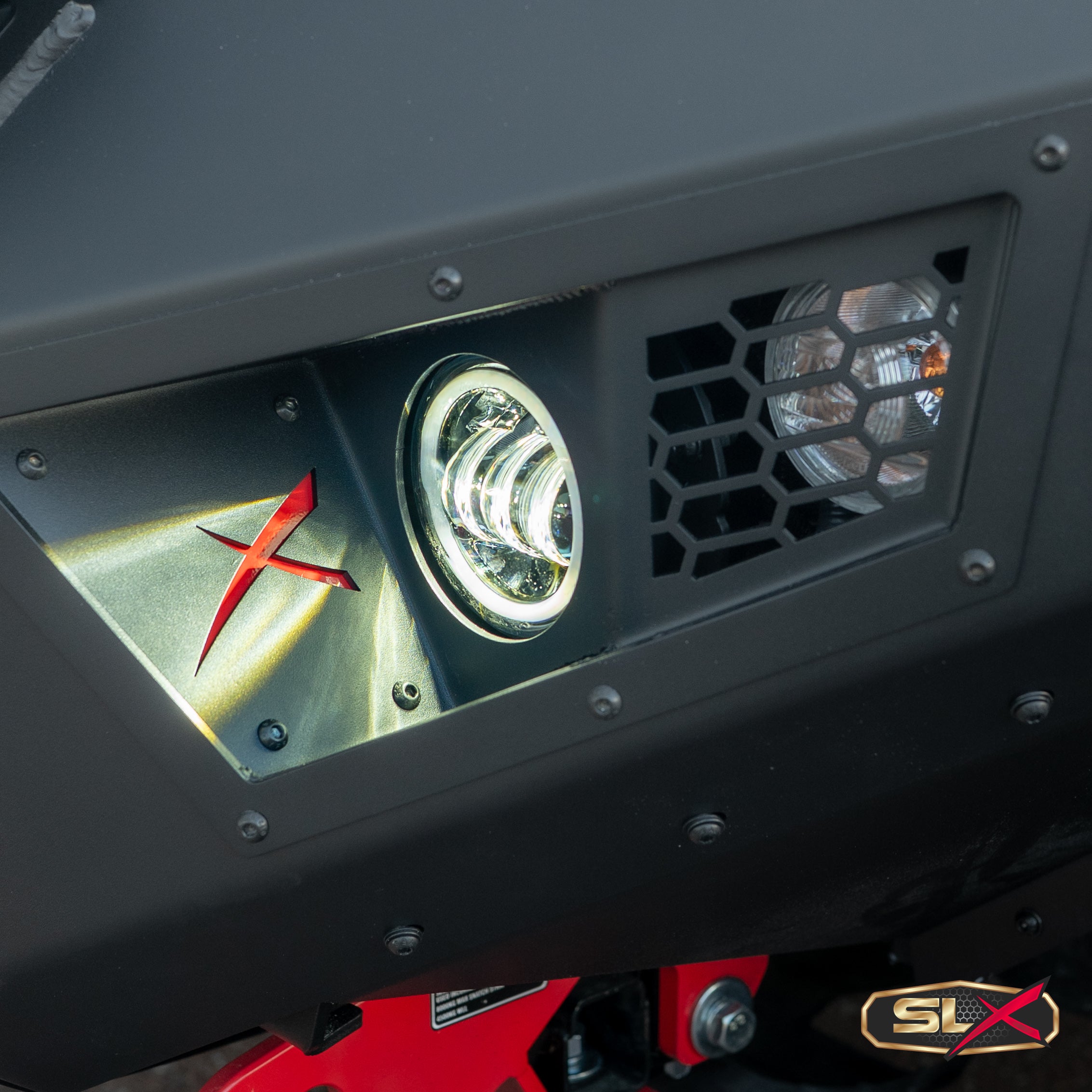

Spot light allocation on top of bar for 3 hole mounting system spotlights.
Sensor cut outs - we provide all sensor housing components.

Only 120mm from front of grill to front of the bullbar.

Can suit upto 12,000lb Low mount Winch.

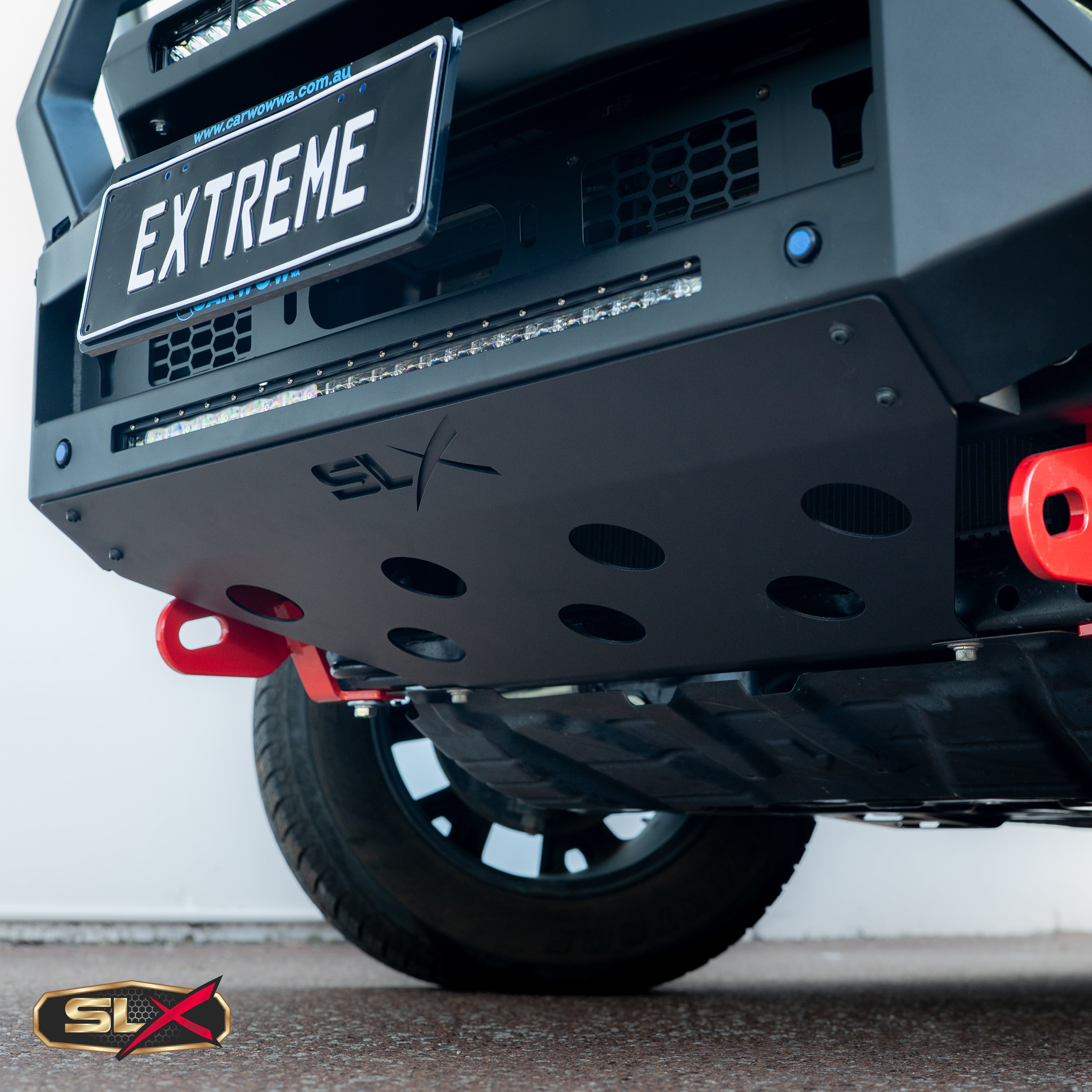

INCLUDES BASH PLATE

  • Made from 8mm steel main winch cradle & 3mm side wings reinforced
  • ADR69 compliant and airbag compatible Tested by ASE
  • Meets AS4876.1 2002
  • Suits most low mount winches upto 12,000LB
  • Powder coated in texture black or can be colour matched(Additional Cost)
  • Bash Plate lazer cut logo back to mounting points under the bar
  • Suits 25inch LED bar
  • Standard with antenna cutout in bar.
  • It’s a complete bumper replacement

Complies with Australian standards such as

 AS4876.1 2002

Section 5 to ADR 92/00 External projections

Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions



Section 5 of ADR 93/00 Forward Field of View



Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions



Benefits

Designed with maximum airflow to all radiators and intercoolers

All bars are completely sensor & safety compatible with factory systems.

Features

Solid Manufacturing – 1 piece fully welded bar for maximum toughness

Low profile design- our frontal protection bars are only 80-120mm depending on the model from the front of the grill.

Loaded with features- our bars include recovery points, bash plates to cross member, under wing bash plates, winch cradles, LED bar provisions & LED lights.

Longevity – Our bars are made with premium 400SS grade steel, after manufacture they are acid washed zinc primed and powder coated in semi gloss matt black.

Protection – 3 bash plates included, front and side under wing.

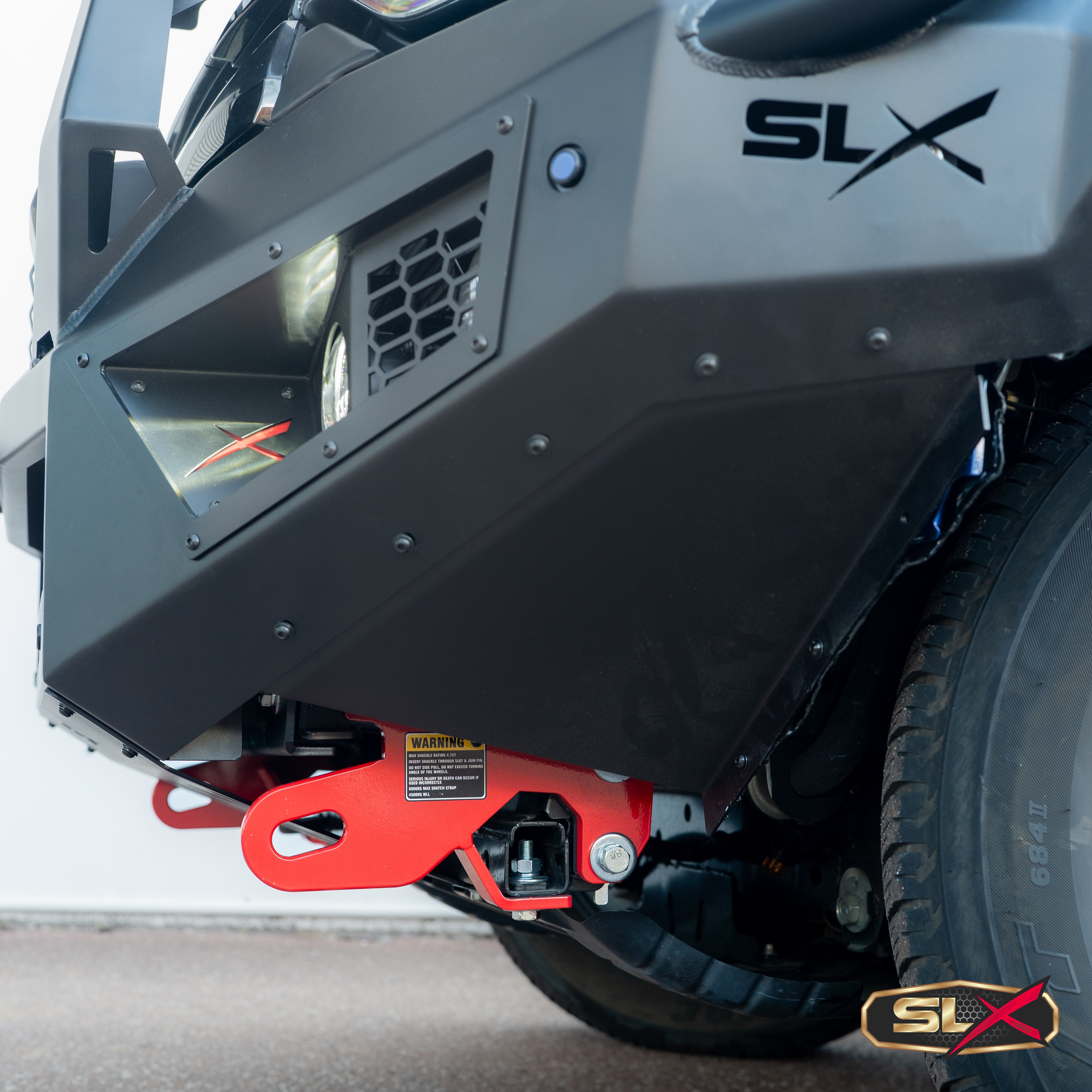

Recovery Points – Our recovery points are rated to  4500kg
