CLEARVIEW - COMPACT Towing mirrors - Ford Everest

Compact Towing Mirrors are just like an OE Mirror, with the additional advantage of the extra visibility that our towing mirror extension provides.

A large convex single mirror reduces the objects that it reflects, allowing the driver to have a much wider field view and diminishing blind spots.

Like all our towing mirrors, our Clearview® Compacts are true replacement mirrors, designed to use the same holes, fittings, and wiring (when applicable) as your original mirrors for plug & play installation. All Clearview Towing Mirrors® are engineered specifically for each vehicle and feature most of the same functionality as the vehicle’s original mirrors.

When set to their normal driving position, the mirrors remain unobtrusive during your daily commute when you don’t need extended mirrors, or when you need to fit into tight spaces.

For a clearer view of your set up when towing or reversing, Clearview’s Compact Mirrors extend a full 180mm, extending your field of vision to help see you to your destination safely.

Clearview Extendable Towing Mirrors are designed for towing trailers, caravans, boats, and horse floats.

Compact Towing Mirrors Features:

• Mirror size and driving position comparable to OEM mirrors
• Telescopic 2-stage extension provides 2 towing positions to choose from, and won’t retract when driving at high speeds or when passing large trucks.
• Large convex single mirror reduces the objects that it reflects, allowing the driver to have a much wider field view and diminishing blind spots.
• Functions great on smaller vehicles with service bodies
• Single mirror models are recommended for vehicles with large canopies or for towing anything under 15ft.
• Extends up to 180mm for towing
• Choice of Manual Fold or Power Fold* (*Options may vary depending on make, model and year of vehicle)
• Choice of black, chrome and raw finish which can be painted to any colour to match your vehicle (Done at any third party auto painting service)
• 2-in-1 Category 5 LED indicator light/clearance light
• Category 6 LED Light available as optional extra
• Clearview towing mirrors® fold inwards or outwards if accidently struck whilst 4WDing or parked.

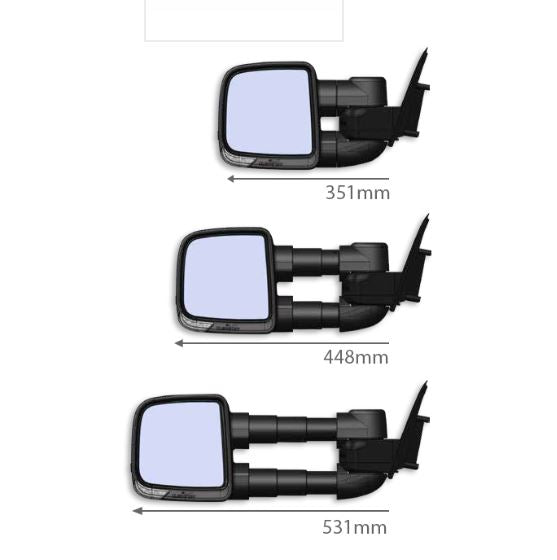

Non-Extended Standard Driving Position

Extended
Towing Position

Fully Extended
Towing Position

The most Compact Towing Mirrors around

Sleek-compact design. In the normal driving position, the Compact Mirror sits 67 MM closer to the vehicle than our Original Towing Mirror.

Sturdy steel construction for durability in the outback.  ————————————————————————————–

Looks great and adds massive functionality to
Extended towing position.

Extended towing position: The Compact Mirror extends to the same towing position as our Original Towing Mirrors.

Clearview Towing Mirrors®

Clearview Towing Mirrors® fold inwards or outwards if accidently struck whilst 4WDing or parked. They are designed to lock into place in any of the three pre-set pivot positions;

• fold towards door
• standard driving position
• fold towards bonnet

Clearview mirrors mount securely in the same position as your original mirrors. They are true replacement mirrors, designed to use the same holes, fittings, and wiring (when applicable) as your original mirrors for plug & play installation.

All Clearview Towing Mirrors® are engineered specifically for each vehicle and feature most of the same functionality as the vehicle’s factory mirrors.

Clearview Towing mirrors do not extend or retract electrically or include auto reverse-dip functionality.

AVAILABLE FEATURES

360 degree Camera

360 degree parking system allowing for extra vision of all angles of the vehicle. Located below the mirror head. Camera must be removed from the OEM mirror and installed into your new Clearview Towing Mirrors. Only available for vehicles with pre-existing 360 camera feature. *Options may vary depending on make, model and year of vehicle.

OAT Sensor

An Outside Ambient Temperature (OAT) sensor can be found in some mirrors to monitor air temperature. This information is transmitted to the car’s computer, which controls the heating and cooling based on your preferred interior temperature. *Options may vary depending on make, model and year of vehicle.

Heated Glass

Demists and defogs glass on the mirror in frosty, icy weather, working off the same de-mist system as the vehicle. Frost and ice will melt away from glass when turned on. Only available for vehicles with pre-existing heated glass feature. *Options may vary depending on make, model and year of vehicle.

Blind Spot Monitoring

Ultrasonic or radar sensors located on the side and rear of vehicle body. Small indication light on the mirror glass alerts you when another vehicle is in your blind spot. Audible alert (beeping) or an induced vibration or light shake of the steering wheel will occur if the turn signal is flashing. Only available for vehicles with pre-existing BSM feature. *Options may vary depending on make, model and year of vehicle.

Memory Adjustments

Allows different drivers to recall the position of the mirror, steering wheel and seat. Settings are found on the inside of the driver's door armrest. Only available for vehicles with pre-existing memory feature. *Options may vary depending on make, model and year of vehicle.

Power Fold

Clearview Mirrors will electrically fold towards the body of the vehicle when you lock the vehicle, and electrically return to the driving position when you start the vehicle. Only available for vehicles with pre-existing power-fold feature. *Options may vary depending on make, model and year of vehicle.

Electric

Clearview Mirrors support vertical and horizontal adjustment of the mirror glass to suit your preferred viewing angles. The single mirror model offers electric adjustment of the mirror and the double mirror models allow for the larger top mirror to be electrically adjusted. The bottom mirror is manually adjusted. Only available for vehicles with pre-existing electric feature. *Options may vary depending on make, model and year of vehicle.

Indicators

Lights in the side of the mirror will flash to notify others that you have intentions to change lanes or turn. Clearview indicator mirror models include clear indicator lens with amber LED lights. Indicators in all manufactured mirrors are a standard CAT5 indicator. 10 LED lights inside lens. Only available for vehicles with pre-existing indicator feature. *Options may vary depending on make, model and year of vehicle.

CAT 6 Indicator option

The Clearview CAT 6 LED Indicator option is designed for vehicles with a GVM upgrade. These indicators comply with ADR 6/00 Category 6, a requirement for some GVM upgrade vehicles. Available to order with CAT6 indicator, if required.

All Clearview Compact Towing Mirrors are available in a choice of black, chrome* and raw finish.

Black

Chrome*

Raw

*Amarok models not available in Chrome due to its effect on radio reception)

Raw finishes can be painted to any colour by a third-party automotive paint shop at an additional cost.

ADR Approved & legal in all states & territories.

All Clearview Towing Mirrors® have been individually tested by Evo Compliance, a NSW based firm with extensive experience within the automotive field and more than 15 years in automotive/mechanical engineering consulting, vehicle compliance and certification.

Design Registration No: 202012425
