EFS RECON 10000lb ELECTRIC WINCH 25M SYNTHETIC ROPE WITH BREATHER KIT
Make it work for your 4x4
Tell us your vehicle and plans. We can help check compatibility and discuss workshop fitting before you order.
Enquire about this productDelivery, collection & fitting
Check shipping options and any fitting requirements for your order. Workshop fitting is arranged with the team.
Shipping informationReturns informationTalk to the workshop: 08 8241 0788Description

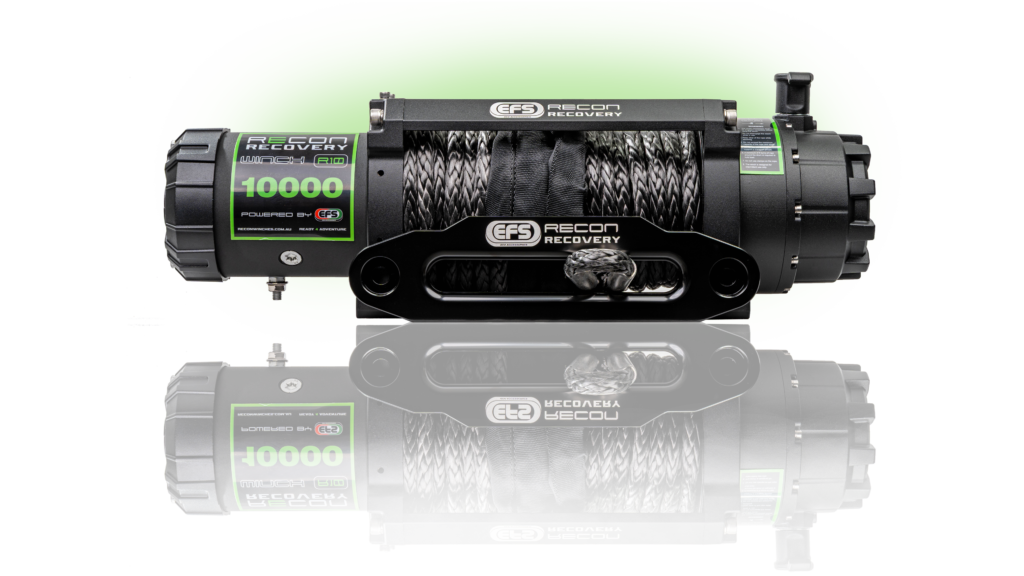

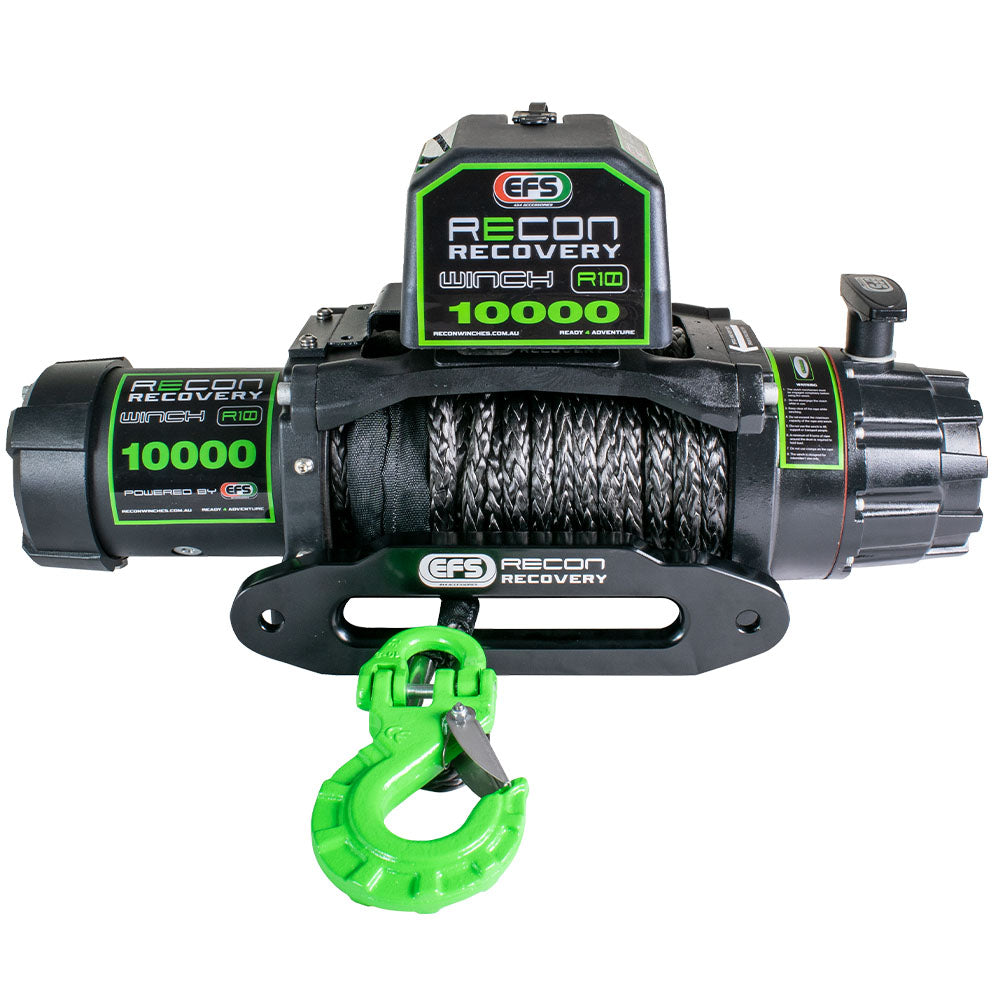

The EFS Recon R10 Winch has been developed with a super fast retrieve rate and boasts a 10,000 LBS rated single line pull. The R10 has a full load automatic brake with a 158:1 gear ratio and comes complete with all pictured accessories.
Specifications:
10,000lbs / 4,540kg rated single line pull

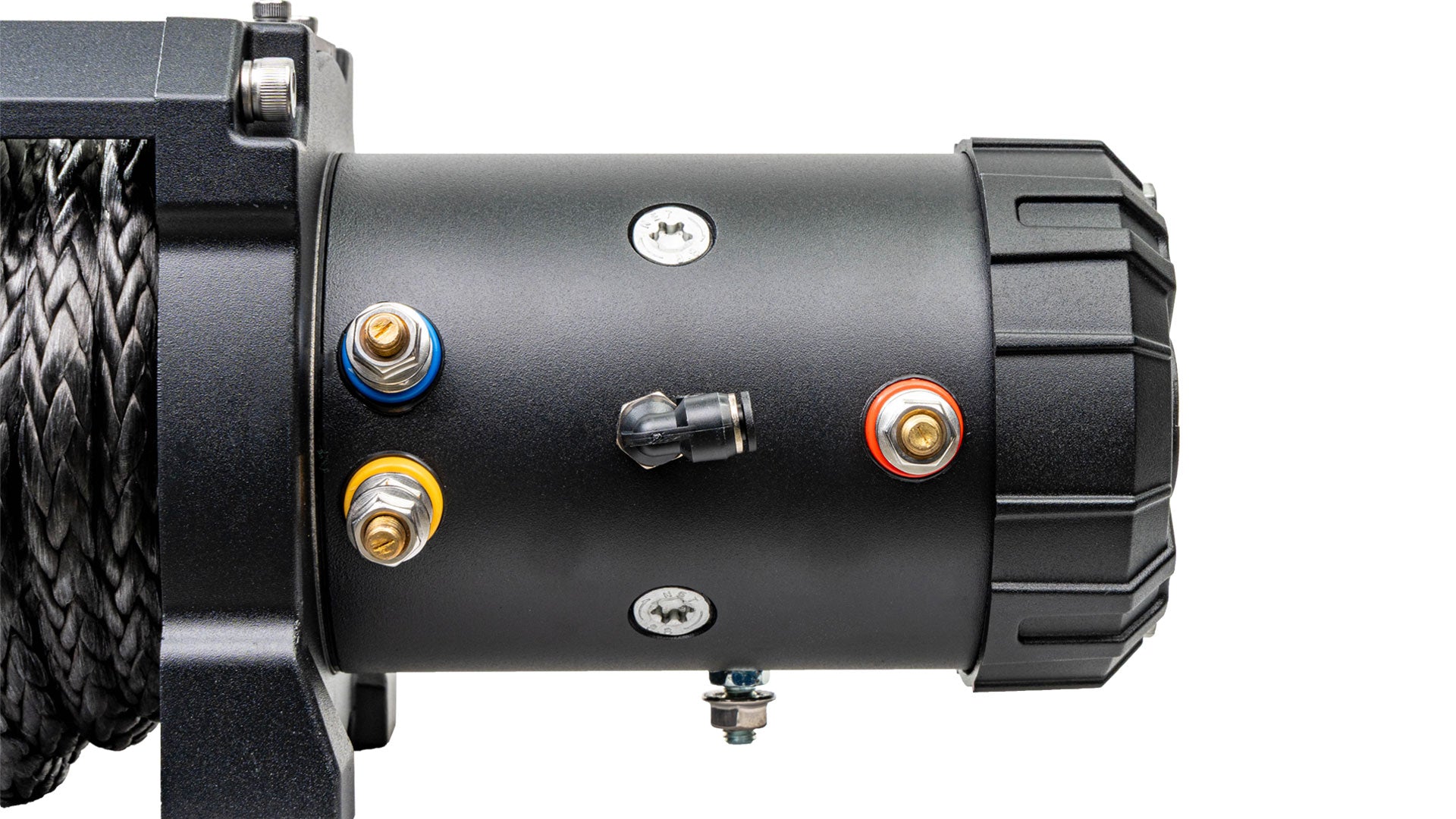

6.0HP 12volt series wound electric motor
Breather
3 stage zinc plated hardened planetary gears
158:1 gear ratio

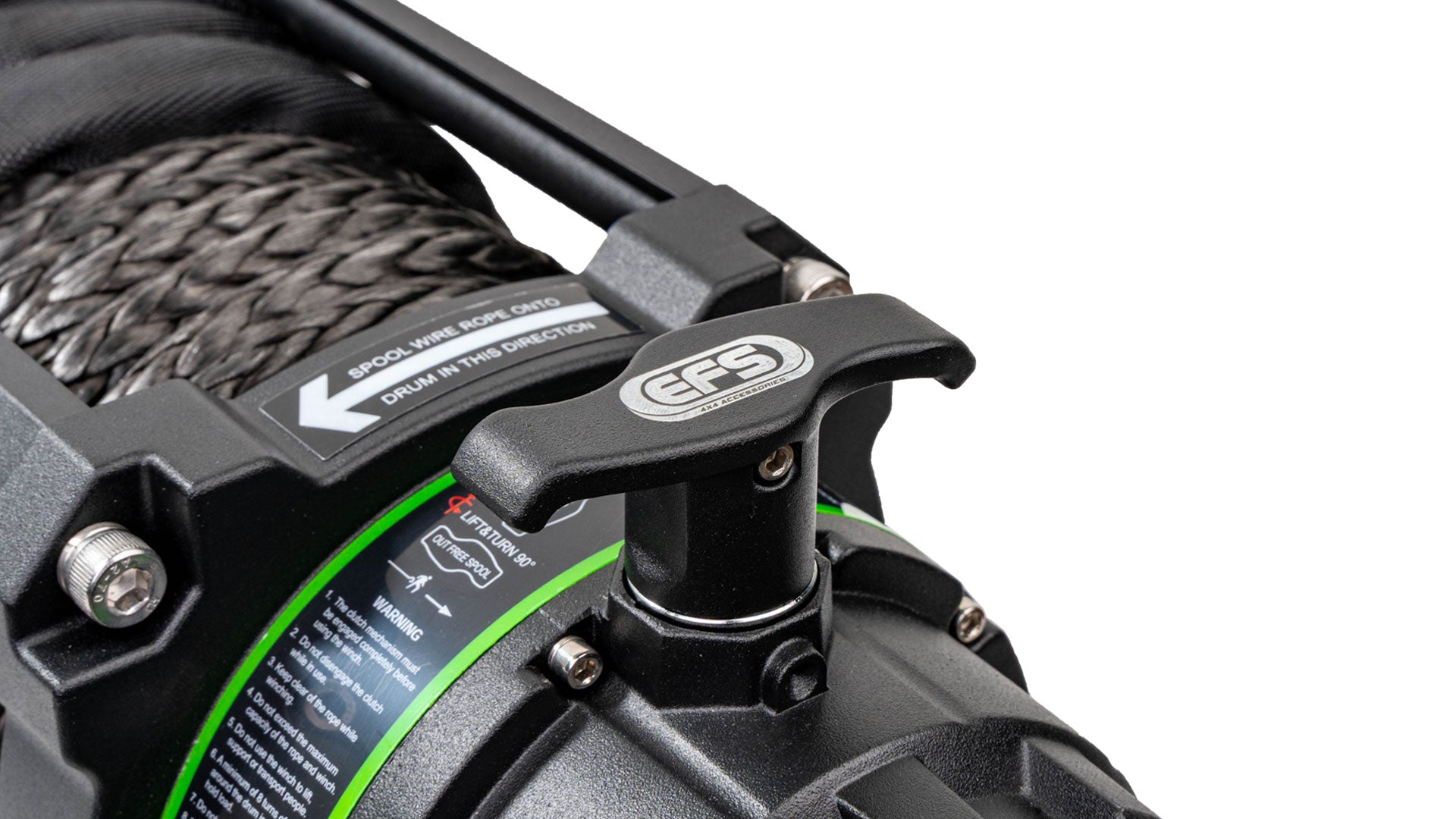

Rotating ring gear clutch with T-handle clutch engagement
18,000lbs SYNTUFF synthetic multistrand rope
High strength antibind nano technology
Abrasion resistant – 10mm diameter – 25m length
Full load automatic brake located at the motor side of the drum
Designed for synthetic rope – no heat build up in the drum
Recommended battery 650CCA minimum for winching
Battery leads: 1.83m
Mounting bolt pattern: 254mm x 114.3mm

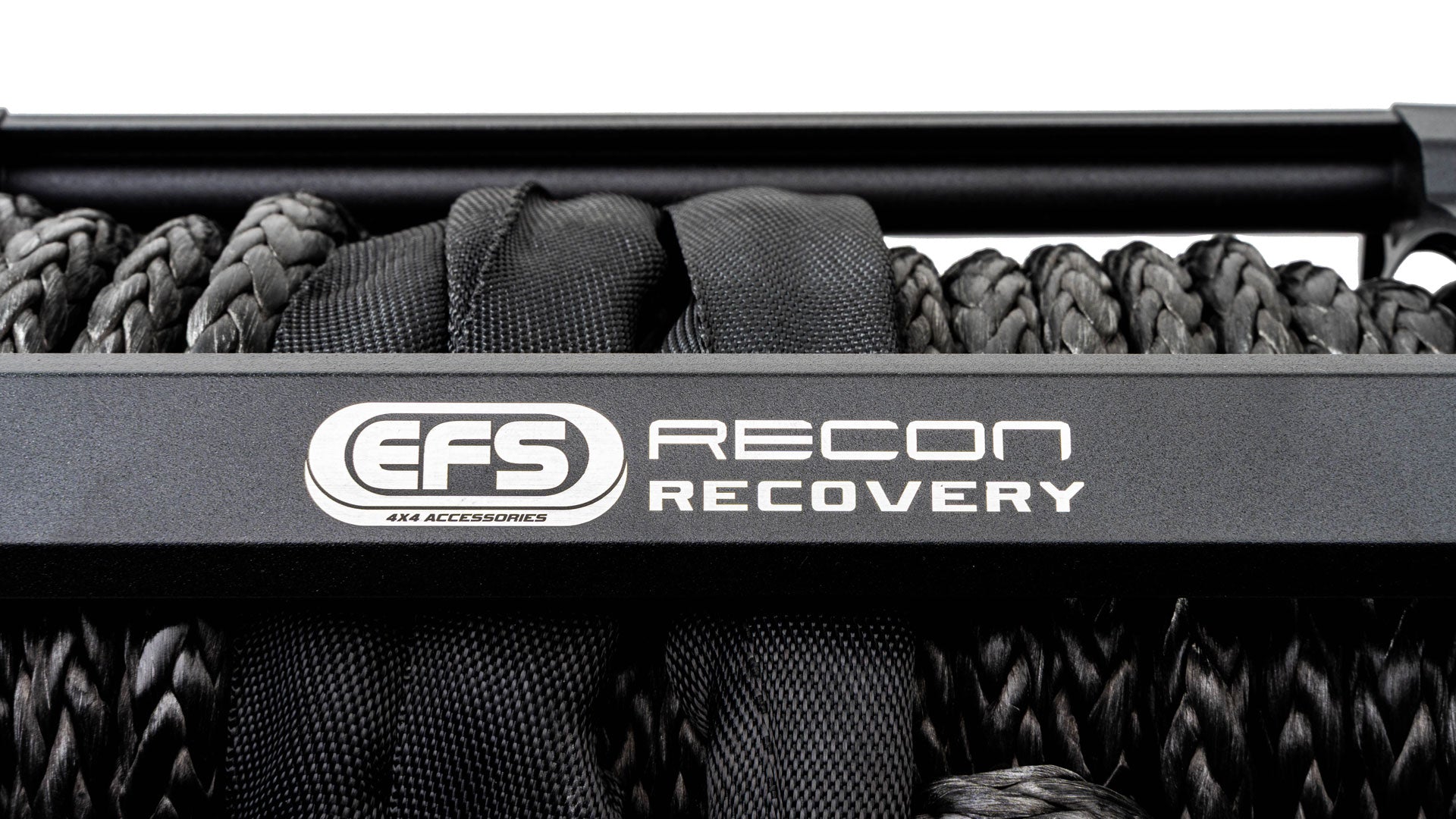

Fairlead: Aluminium
Control box relay: 450A
Waterproof IP68 tested and rated
Incl wireless & wired remote 3.6m lead
We recommend a battery isolation switch to be used
