Toyota Land Cruiser 105 Raw4x4 nitromax suspension kit


As the big bore heavy duty shock absorber in the RAW 4x4 range, these shocks have been designed for heavy coil sprung and torsion bar vehicles by using proven truck shock absorber design with highly tuned valving designed for 4x4 applications. With a massive 70mm body and a nitrogen gas cell in the outer tube, RAW Nitro Max will significantly reduce shock absorber fade in the harshest conditions.

  • Large 41mm bore size
  • Nitrogen gas cell to eliminate aeration inside the shock absorber
  • High temperature oil to maintain viscosity under hard working conditions
  • Multi lip Viton seal to retain oil at temperatures up to 240 degrees celsius
  • Polyurethane bushing
  • One piece eye rings & 360 degree welds on all fittings
  • Silicone dust boot

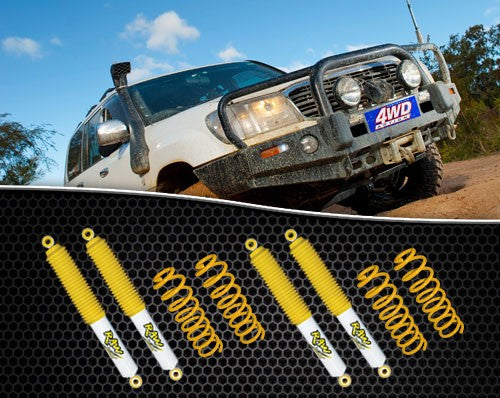

Front Shock Absorbers 41mm bore nitromax 2
Front Coil Springs - Up To 150kg LBA (PAIR) 50mm raised 1
Rear Shock Absorbers 41mm bore nitromax 2
Rear Coil Springs - 300kg - 500kg LBA (PAIR) 50mm raised 1
